ztrfm advanced Triple Layer Roofing Sheet Roll Forming Machine, a game-changer in the roofing sheet manufacturing industry. This high-performance equipment enables simultaneous roll forming of three layers, streamlining production and saving time. Precision-engineered rollers ensure impeccable sheet shaping, delivering consistent and top-quality output. Its user-friendly interface allows easy control and adjustments, while safety features prioritize operator well-being. Built with durability in mind, this machine promises longevity and low maintenance. Compatible with various materials, it offers versatility and energy efficiency. Experience enhanced productivity and maximize your manufacturing potential with our cutting-edge Triple Layer Roofing Sheet Roll Forming Machine.

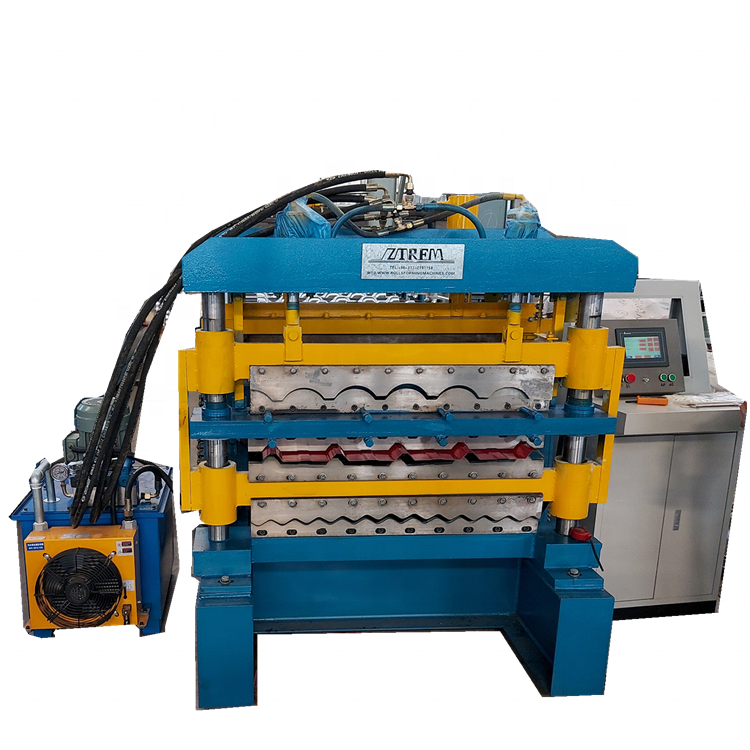

Triple Layer Roofing Sheet Roll Forming Machine is used to produce the Metal sheet Roofing sheet for roof and wall,this one machine can produce 3 types of roofing sheet:Step tile,IBR sheet and corrugated sheet.
The pictures of the sheet:
We also support customization as customer’s request,such as the shape,the size and the thickness of the finished product.
The application of the Metal roofing sheet:
The working process of the Triple layer roll forming machine:
Decoiling–Feeding–Forming–Cutting–Product receive table
The technical specification of the Triple layer roll forming machine:

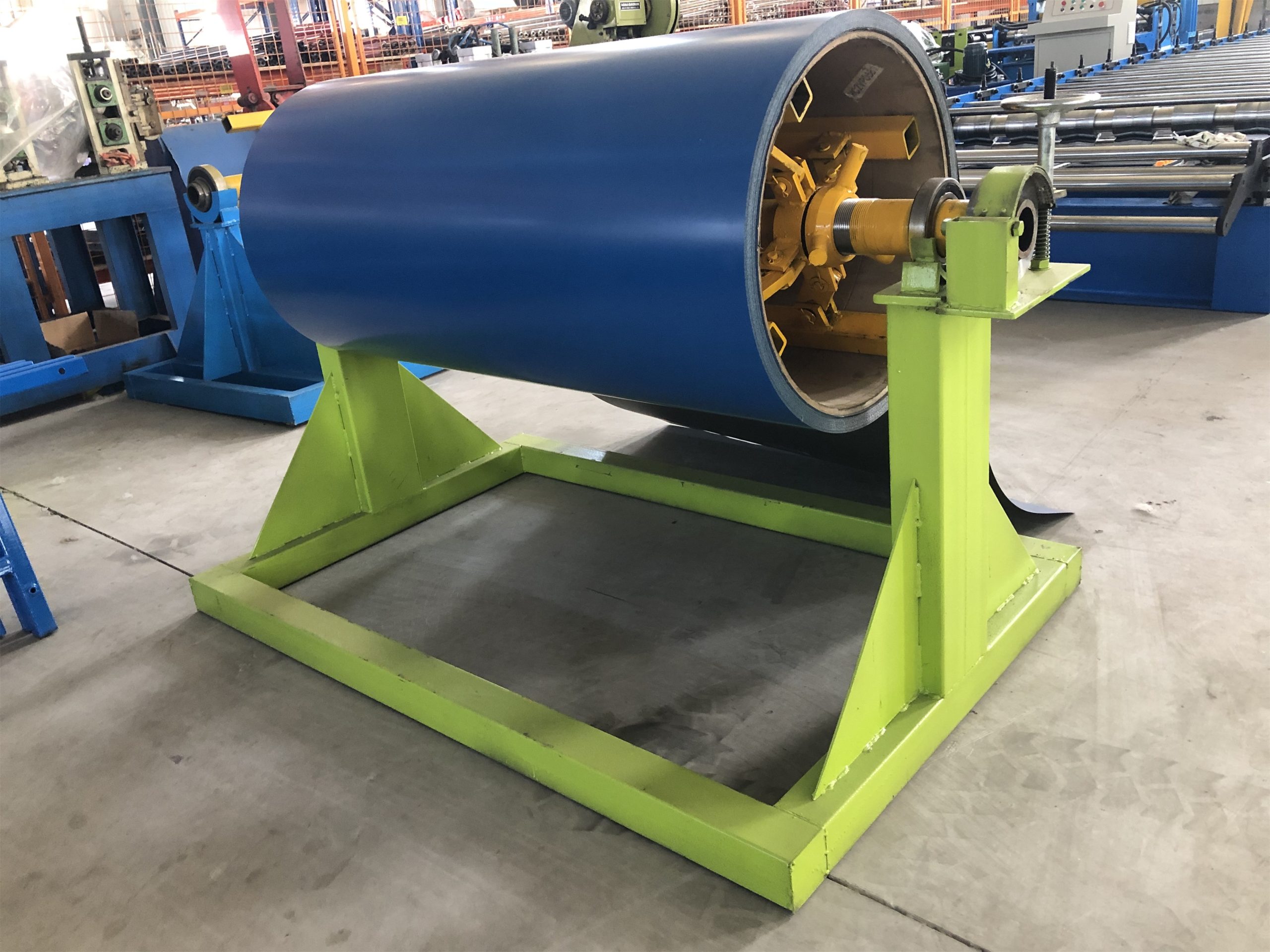

| Part 1: Decoiler | ||
| 1. | Capacity | 5 tons |
| 2. | Suitable coil width | Max 1250mm |
| 3. | Suitable coil inner diameter | 450-550mm |
| 4. | Working type | Manual or hydraulic as optional |
  | ||

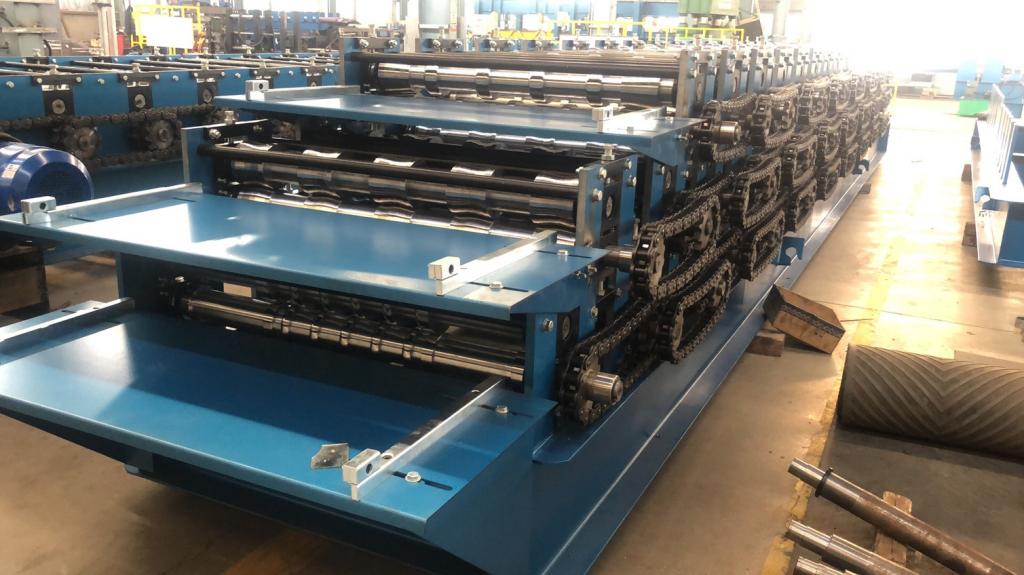

| Part 2:Main roll former | ||
| 1. | Main frame | 350# H steel welded |
| 2. | Shaft material | 45# steel,solid guaranteed |
| 3. | Shaft diameter | 80mm |
| 4. | Roller material | 45# steel,surface with chromed treatment to improve the hardness of the roller |
| 5. | Motor power | 7.5kw |
| 6. | Transmission | By chain |
  | ||
| Part 3:Hydraulic cutting system | ||
| 1. | Cutting type | Hydraulic cutting |
| 2. | Hydraulic station power | 5.5 kw |
| 3. | Cooling system | Fan cooling |
 | ||
| Part 4:Control system | ||
| 1. | Control system | PLC |
| 2. | Brand | Siemens,Delta or Mitsubishi |
| 3. | Encoder brand | Omron |
| 4. | Language | Chinese/English/Spanish/French/Arabic |
  | ||
| Part 5:Product receive table | ||
| 1. | Length | 3 meters |
| 2. | Working type | Manual or automatic as optional |
The triple layer roofing sheet roll forming mahine working video:
