TR4/TR5 Roofing Sheet Roll Forming Machine or Trapezoid Profile Roll Forming Making Machine is designed to make the metal roofing sheet in batch fully automatically.

TR4/TR5 Roofing Sheet Roll Forming Machine

 TR4/TR5 roofing sheet roll forming machine or we call it as trapezoid profile roll forming making machine is designed to make the metal roofing sheet machine by rolling forming working principle. Tr4 or Tr5 is the quite popular design in South American, especially in Peru. Here I will take the following drawing profile for your reference:

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

For this profile, the most difficult part is that during the rolling forming, there maybe waves on the profile or there are some scratch on the surface of the coil. The reason as that the wave height is too high, it needs around 22 roller stations to do the rolling forming. Here is the machine design pictures for your reference:

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

The TR4/TR5 Roofing Sheet Roll Forming Machine is composed by the following elements.

Packing list-roof profile machine
No.NameUnitQuantityRemark
Part 15T decoilerset1Manual
Part 2Main roll formerset1Chains drive
Part 3PLC control stationset1Delta brand
Part 4Cutting systemset1Hydraulic
Part 5Product collect tableset1Regular type

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

Why should Choose our Trapezoid Profile Roll Forming Making Machine?

  1. For the profile we can make sure 100% good as we have experience, we have sent around 20 sets per year same drawing to South American.
  2. For the roller we have our special design:

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

3. For the PLC control system, Control station with aviation plug:

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

4. For the language, we supports many type languages. And it allows you to set 20 batches production. The equipment control is PLC control, and multiple safety protection is set during normal production.

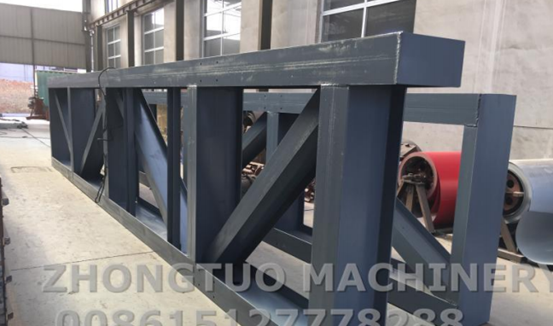

5. The frame based is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

  1. The forming frame is cast iron structure and tempered. High strength and long service life.
    7. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
    8. The material of the forming mold is Cr12, quenching treatment, hardness: HRC 56-62 °C.
    9. The transmission structure is double chain transmission,high-intensity operation, and long service life.

 TR4/TR5 Roofing Sheet Roll Forming Machine Trapezoid Profile Roll Forming Making Machine

General Parameters of Trapezoid Profile Roll Forming Making Machine:

NOITEMParameter
1Forming SpeedMax18m/min(depend on quantity of punching)
10-15METERS/MIN depends on the quantity of punching holes
2Forming stationAround 22 groups
3Total PowerAbout 7.5 KW
4Total WeightAbout7500kgs
5Voltage220v,50hz,3p
6Diameter of shaft90mm
7Installation Size9.5 * 1.2 M*1.5
