ZTRFM Step Tile IBR Sheet Roll Forming Machine, a state-of-the-art solution for producing Step Tile and IBR roofing sheets with precision and efficiency. This cutting-edge equipment is designed to meet the demands of modern roofing construction, ensuring seamless and accurate forming of Step Tile and IBR profiles. With user-friendly controls and robust construction, it guarantees reliable performance and reduced maintenance needs. Elevate your roofing manufacturing process with this versatile and reliable machine, bringing speed, accuracy, and top-notch quality to your production line.
Our Step tile and IBR sheet Roll Forming Machine is used to produce the Step tile and the IBR sheet,the raw material can be PPGI color steel,galvanized steel and other material as request.One double layer roll forming machine can produce two different products as customer’s request.
The pictures for the Step tile and IBR sheet(The profile drawing can be produced as customer’s request):
The working layout for the whole Step tile and IBR sheet Double deck Roll Forming Machine production line:
The introduction for each part of Step tile and IBR sheet Double deck Roll Forming Machine:
Part 1:Decoiler
Function:It is used to expand the coil for the next roll forming process.
Capacity:5 tons is widely used,but 8ton,10tons are all optional,we can customize as customer’s request
Type:Automatic and manual two kinds of decoilers which is optional for customer.
Machines’picture for reference:
Part 2: Roll forming machine
Function: To roll form the plain plate to the request sizes of Step tile and IBR sheet.
Main specifications:
- Roller station:13+17 stations
- Roller material:45# steel with quenched treatment
- Shaft material:45# steel with quenched treatment
- Shaft diameter:80mm,full solid
- Power:5.5kw
- Transmission:By double chains
- Main frame:350# H steel
- Middle plate:18mm thickness

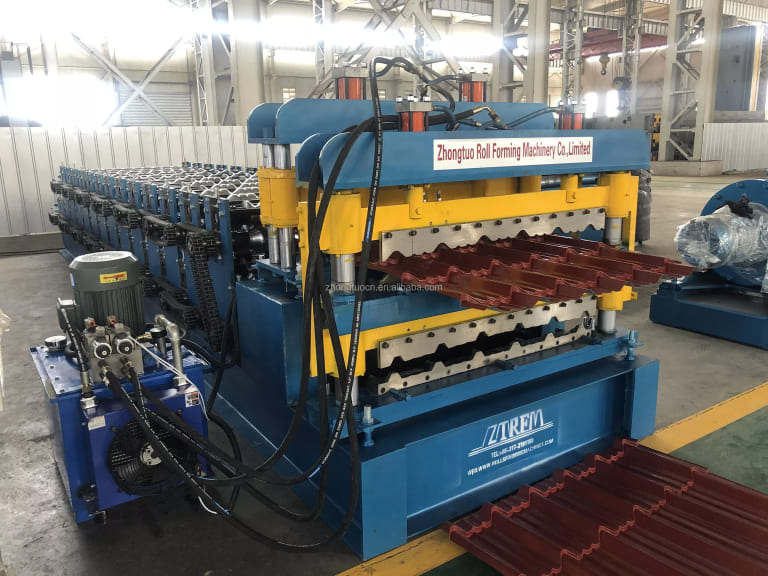

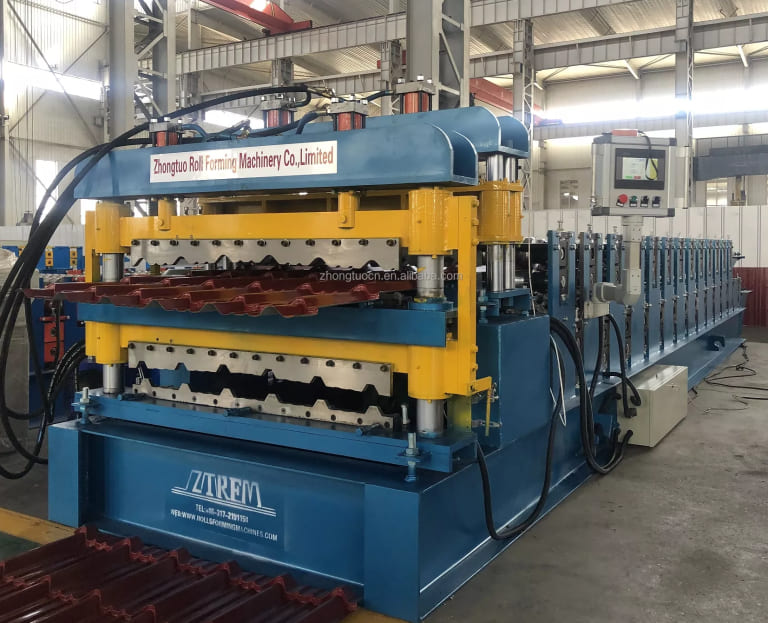

Pictures for reference:
Part 3: Hydraulic cutting system
Function:Used to cut the sheet after roll forming
Main specifications:
- Cutting blade material:Cr12 with quenched treatment
- Hydraulic power:5.5kw
- Cooling system:Fan cooling
Picture for reference:
Part 4:Control system
Function:Used to control the working speed,the quantity and batch of the finished product.
Main specifications:
- Control system:PLC
- PLC brand:Delta from Taiwan,or Siemens,Schneider
- Touch screen:Delta from Taiwan,or Siemens,Schneider
- Encoder:Omron brand
- Low pressure apparatues:Schneider
- Language:Chinese/English/Spanish/France/Russian/Arabic
- Aviation plug for easy connection for customers.
Pictures for reference:
Part 5:Product receive table
Function:Used to receive the product after cutting
Working type:Manual or Automatic
Length:3m/set
Quantity:1 set
