This PV5 Roofing Sheet Roll Forming Machine is an advanced industrial device tailored for efficient production of high-quality PV5 roofing sheets. With precision engineering and automated operations, this machine effortlessly shapes metal sheets into precise and uniform PV5 profiles. Its versatility allows for various sizes and designs of roofing sheets, catering to diverse construction needs. The PV5 Roofing Sheet Roll Forming Machine ensures consistent and accurate results, optimizing production efficiency and reducing labor costs. It is an essential tool for manufacturers aiming to deliver reliable and durable PV5 roofing sheets for commercial, industrial, and residential buildings, providing superior weather resistance and aesthetics.

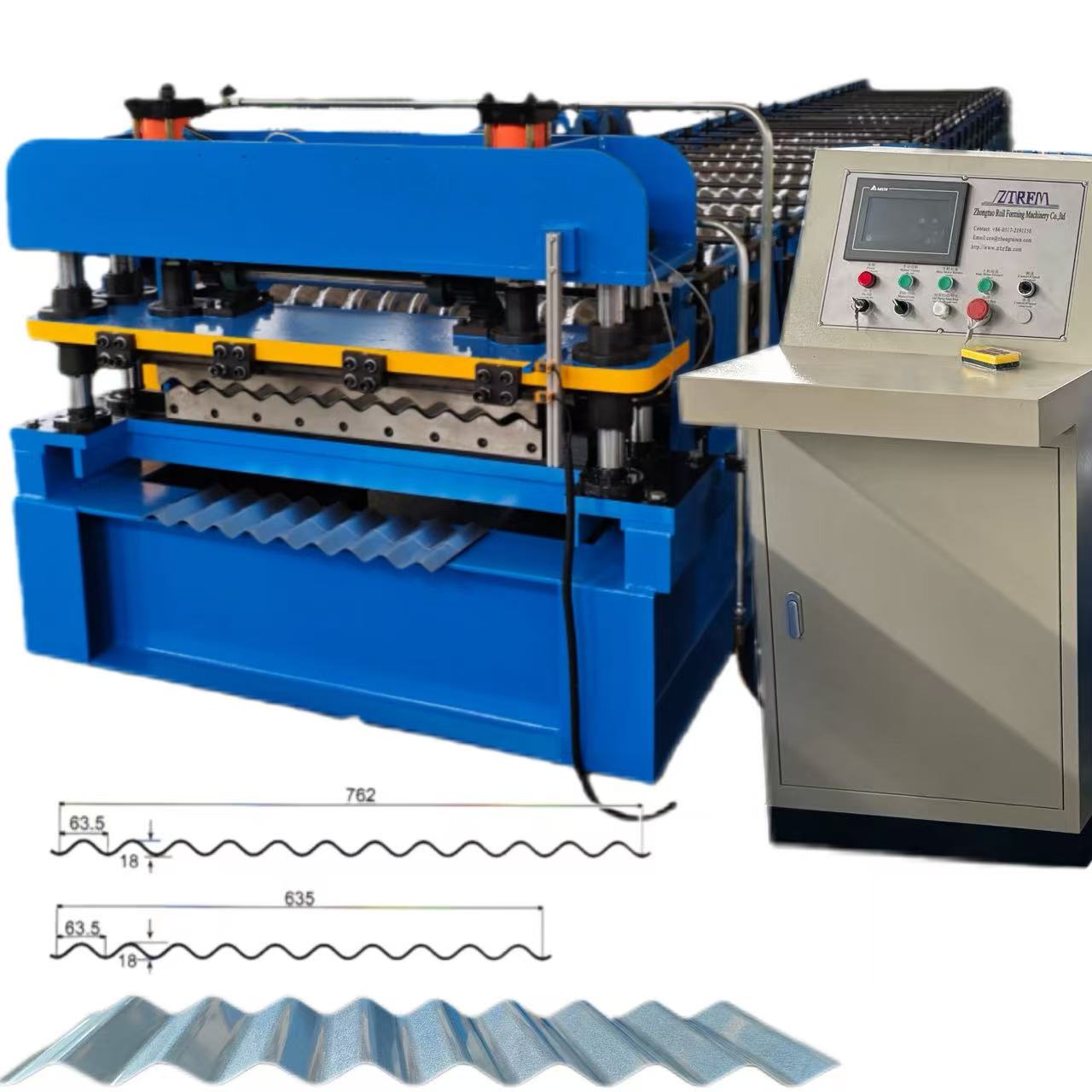

PV5 roof sheet and corrugated sheet roll forming machine is a double layer machine to produce the PV5 metal roof sheet and corrugated sheet for Chilean market,these two moldels are very popular in Chile.
The profile drawing of the PV5 roof sheet and corrugated sheet
Model:PV5 and corrugated sheet.
Coil size:940mm and 1000mm
Effective width:854mm and 825mm
We have a professional engineer team which can design the machine as customer’s request.
Main technical parameters of the whole line:
1.Uncoiler/Decoiler:Capacity 5-10 tons,manual or automatic optional
2.Roller station:10 stations for PV5
13 stations for corrugated sheet
3.Roller material:45# steel with heat treatment
4.Shaft diameter:80mm
5.Shaft material:45# steel with quenched treatment
6.Motor power:5.5kw
7.Transmission:by double chains
8.Hydraulic cutting,no distorting or wasting.High safety level.
9.Hydraulic power:5.5kw
10.Product receive table:3 m*2 sets
More pictures of our machine:
The video of the machine working:
More roll forming machine for different countries:
