PU Rolling Shutter Forming Machine

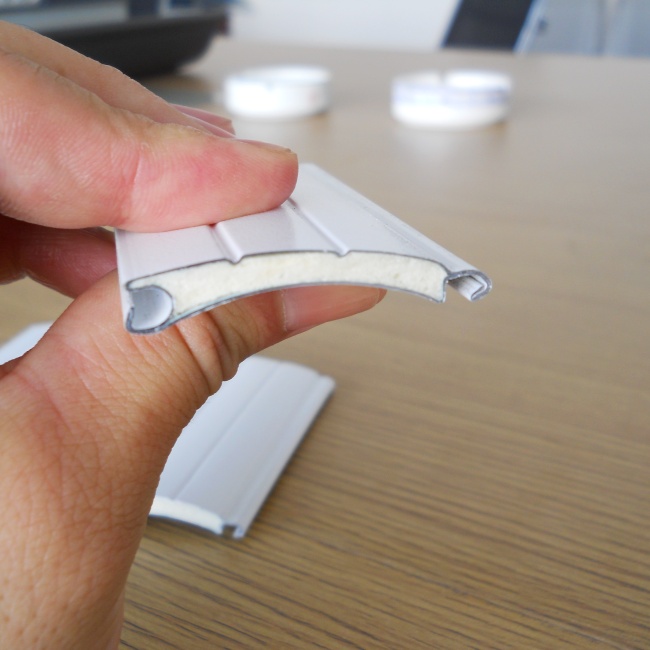

The PU roller shutter door is widely used in commercial stores, industrial plants and garages. It not only excels in providing insulation to save energy, but also is remarkable in offering sound insulation for a quiet environment. Moreover, it is high-strength and durable, thus reducing costs. It has good sealing and is easy to operate. With various surface treatments and rich colors, it can perfectly match different architectural styles to enhance aesthetics. Additionally, it can be customized according to different needs. It can be installed quickly and easily. It can also be maintained with ease.
If you have your own design for PU roller shutter doors, show us your design drawing. The good suggestion can be given out by our engineer. If you have any idea about your new project related to PU roller shutter doors, some professional idea can be gotten from us.
PU Rolling Shutter Forming Machine
PU Rolling Shutter Forming Machine working flow:
Decoiler—feeding device—main forming—PU injection —straighten device—Cutting —run out table
Basic information of PU Rolling Shutter Forming Machine
Suitable material:
| Material type | Aluminum coil plate and colorful galvanize steel |
| Material thickness | 0.27- 0.4mm |
| coil width | 187mm Material |
| yield strength | ≤G200Mpa |
Main specification

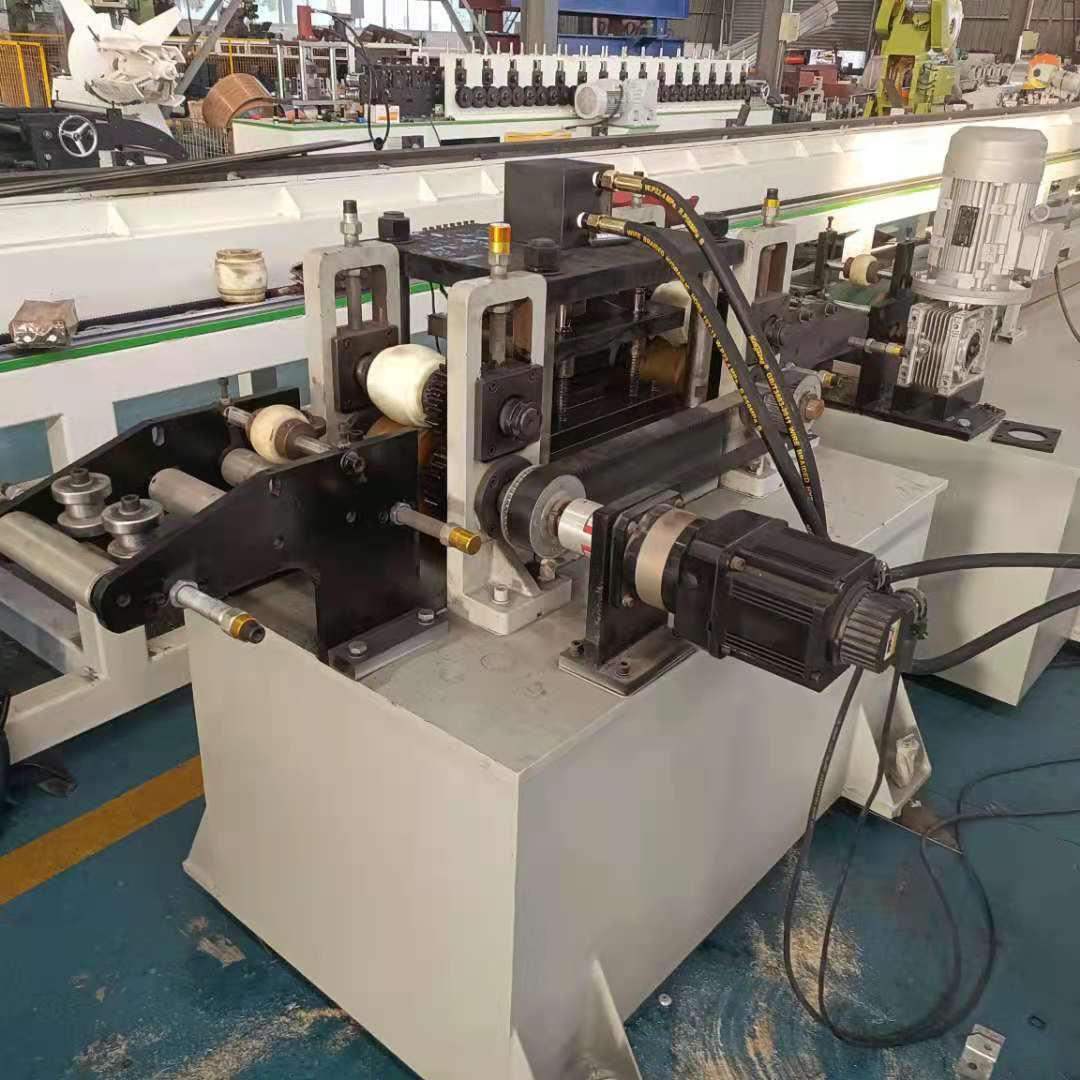

a. Decoiler: Manual un-coiling Capacity:≤3 T
Main datas of forming machine:
| Forming stands: | about 28 stands |
| Roller material: | Cr12 |
| Axial diameter | Φ40mm |
| Main shaft material: | 40Cr |
| Driving part: | gearbox |
| PLC touch screen: | Siemens Inverter: Mitsubishi |
Control electrical components: Schneider
| PLC control | fix length control ±1mm |
| The precision of roller | less than ±0.5mm |
| Main roll forming machine motor | 380V, 50HZ, 11kw (or according to your requirements) |
| Machine basement material | H beam |

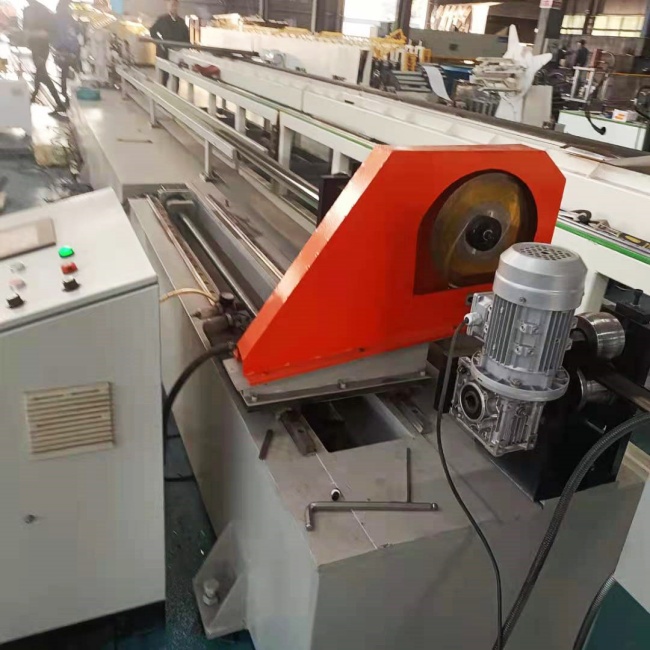

Cutting system
Material of cut: Cr12Mov；
Quench: HRC58-62
Finished products table: 1 set
Working speed: 8-15m/min
dimensions of main forming machine
24000mm×600mm ×900mm Machine weight: about 7.5T
