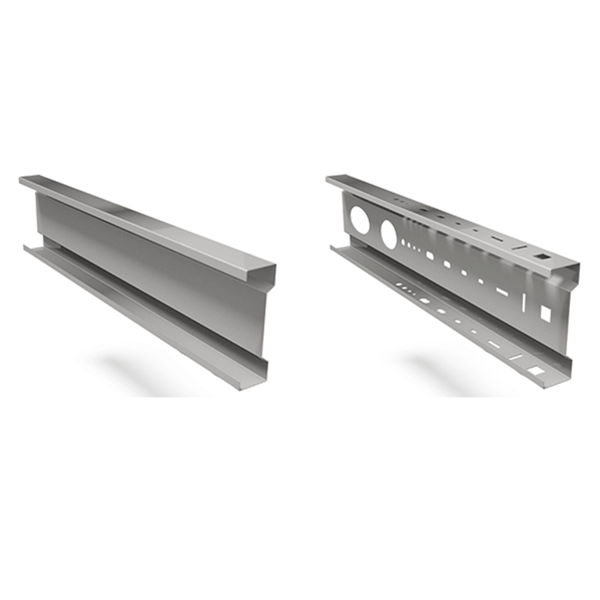

The M Purlin Roll Forming Machine is a cutting-edge industrial equipment designed for efficient production of high-quality M purlins. With precision engineering and advanced technology, this machine effortlessly shapes metal sheets into precise and uniform M purlin profiles. Its versatility allows for various sizes and designs of purlins, meeting diverse construction needs. The M Purlin Roll Forming Machine ensures consistent and accurate results, optimizing production efficiency and reducing labor costs. It is an essential tool for manufacturers aiming to deliver reliable and durable M purlins for commercial, industrial, and residential buildings, providing superior structural support and exceptional performance.
Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purlin profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher. Here I will share a more economic design which only can produce M purlin, by this way we can save the cost:
Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

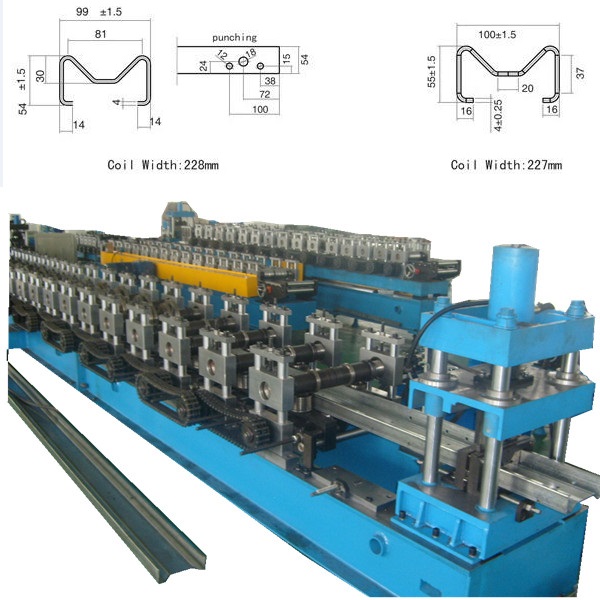

Sigma Purlins M purlin roll forming machine manual adjustment type for your reference:
Sigma Purlins M purlin roll forming machine working flow:
Uncoiling—guiding—feeding&flatting—forming—punching&cutting—product receiving
| M purlin roll forming system | ||
| Roll forming system | Guiding rollerTwo pcs Diameter of 40mm Tempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&fl atting device 5 pcs Diameter of 70mm Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Two pcsDiameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right position Feeding&flatting device 5 pcs Diameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains |
| Diameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&flatting device5 pcs Diameter of 70mmTempering treatment Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain | ||
| Diameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&flatting device5 pcs Diameter of 70mmTempering treatment Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain | ||
| Usage: to let the sheet feeding into next device in the right position Feeding&flatting device 5 pcs Diameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | ||
| Feeding&flatting device 5 pcs Diameter of70mm Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain | 5 pcsDiameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stations speedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw | |
| Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment RollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw | ||
| Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw | ||
| Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw ransmission By chains | Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stations speedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| Shaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | ||
| Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | ||
| Roller Roller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Roller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | ||
| Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| speed Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Carbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| Machine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | |
| Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Chinese famous brand HarbinWork power15 kw Transmission By chains | |
| work power15 kw Transmission By chains | 15 kw Transmission By chains | |
| Transmission By chains | chains By chains | |

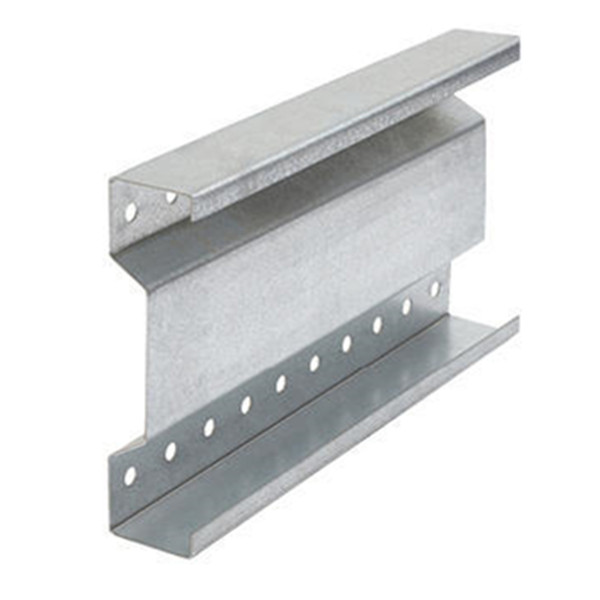

Where to use the M purlin:
Roof purlins:
Use sleeves to shorter purlin or assemble 2-span purlin staggered
Keep a space of approx. 15 mm between the truss and the purlin
Eaves beams are supplied with an angled top flange, so only 1 profile is needed where roof and wall meet
Options of CUM purlin fully automatic type, we will share in next article. For more information, please contact us at any time.
- Q: What kinds of experience do you have in producing C/Z purlin roll forming machine?
A: We have exported C/Z purlin roll forming machine to to India, Serbia, UK, Peru, Argentina, Chile, Hondulas, Bolivia, Egypt, Poland, Russia, Spain, Romania etc. It’s the most popular roll forming machine of all.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling roll forming machine, wall angle roll formign machine, light gauge steel roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.
Simply the best steel frame machine for your project.
- Q: How many sizes can produce this machine?
A: This machine can produce C purlin, Z purlin, U purlin, Sigma purlin, and each section could produce many sizes, width range is 80-300mm, height range is 50-100mm, recommendable thickness range is 1.5-3mm. It’s your best and affordable choice for steel frame.
- Q: What is delivery time of purlin roll forming machine?
A: 60 days to 70 days depends on your drawing.
- Q: What is your machine speed?
A: Normally forming speed is around 20m/min (adjustable) with flying cutting for thickness 1.5mm. For 3mm, forming speed is lower, around 15m/min.
- Q: How could you control your machine’s precision and quality?
A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.
- Q: What is your after-sales service system?
A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
