We made many 4mm cut to length machine before, we have customer from Libya, this customer bought a 4x1600mm cut to length machine, this is a machine with high configuration, this machine have such as automatic decoiler with automatic loading card, hydraulic press arm and professional leveling rollers, the leveling rollers can guarantee the plate are straight and flat before cut to lenght, and at the same time, this machine have automatic stacker, this can save the labor cost for customer, after the cutting number is enough, customer can do the packaging directly.
Here attached is the working flow of the cut to length machine:
Here below is our machine parameters for you check:
| No. | Name | Unit | Parameter |
| 1. | Control model | PLC frequency control | |
| 2. | Applied to | Stainless steel; low carbon steel | |
| 3. | Thickness | mm | 0.6-4.0 |
| 4. | Width | mm | 800~1600 |
| 5. | ID | mm | Φ508-610 |
| 6. | OD | mm | ≤1800 |
| 7. | Coil weight | Ton | ≤15 |
| 8. | Diameter of leveling rollers | mm | 95 |
| 9. | Distance of leveling rollers | mm | 100 |
| 10. | Number of leveling rollers | 19 | |
| 11. | Material of leveling roller | GCr15 | |
| 12. | Material of cutter blade | 6CrW2Si | |
| 13. | Speed | m/min | ≤70 |
| 14. | Direction of feed material | from right to left | |
| 15. | Length tolerance | ≤±0.5mm/2000mm | |
| 16. | Diagonal tolerance | ≤±1mm/2000mm | |
| 17. | Power | 440V/3PH/60HZ (customized) |

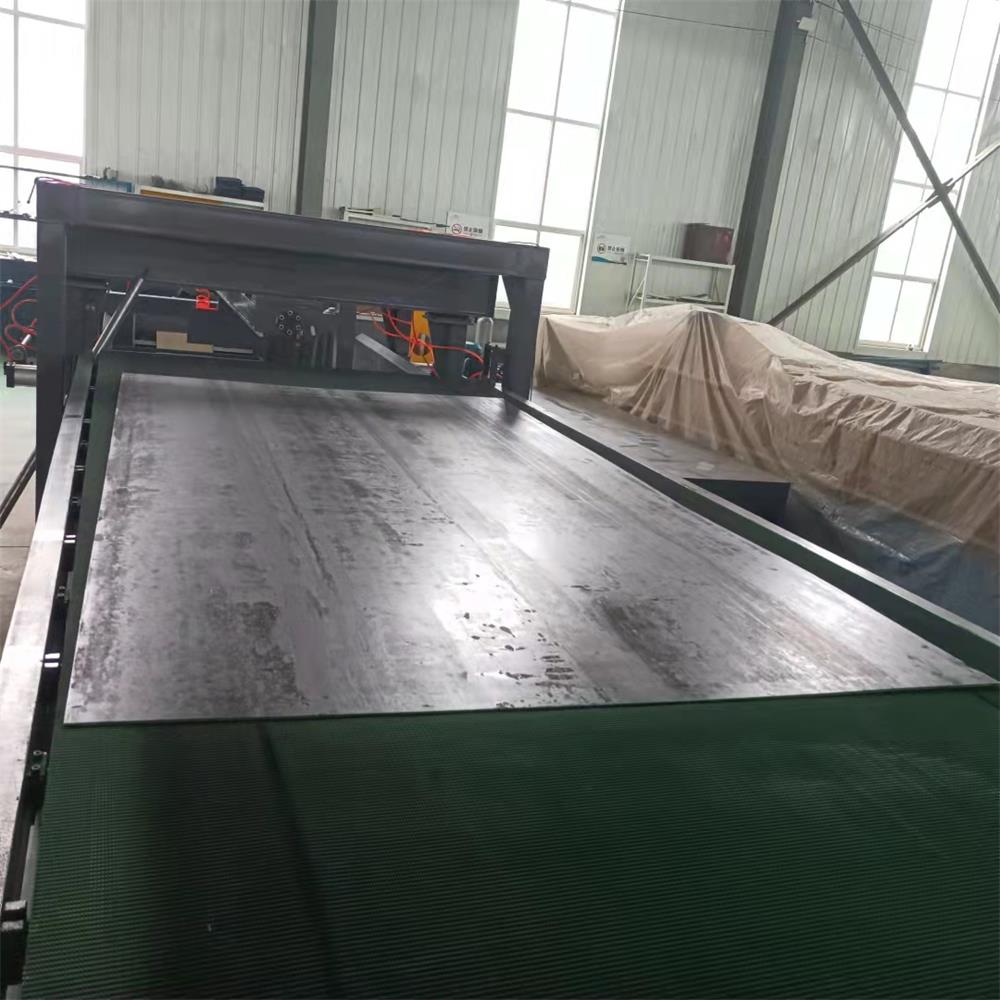

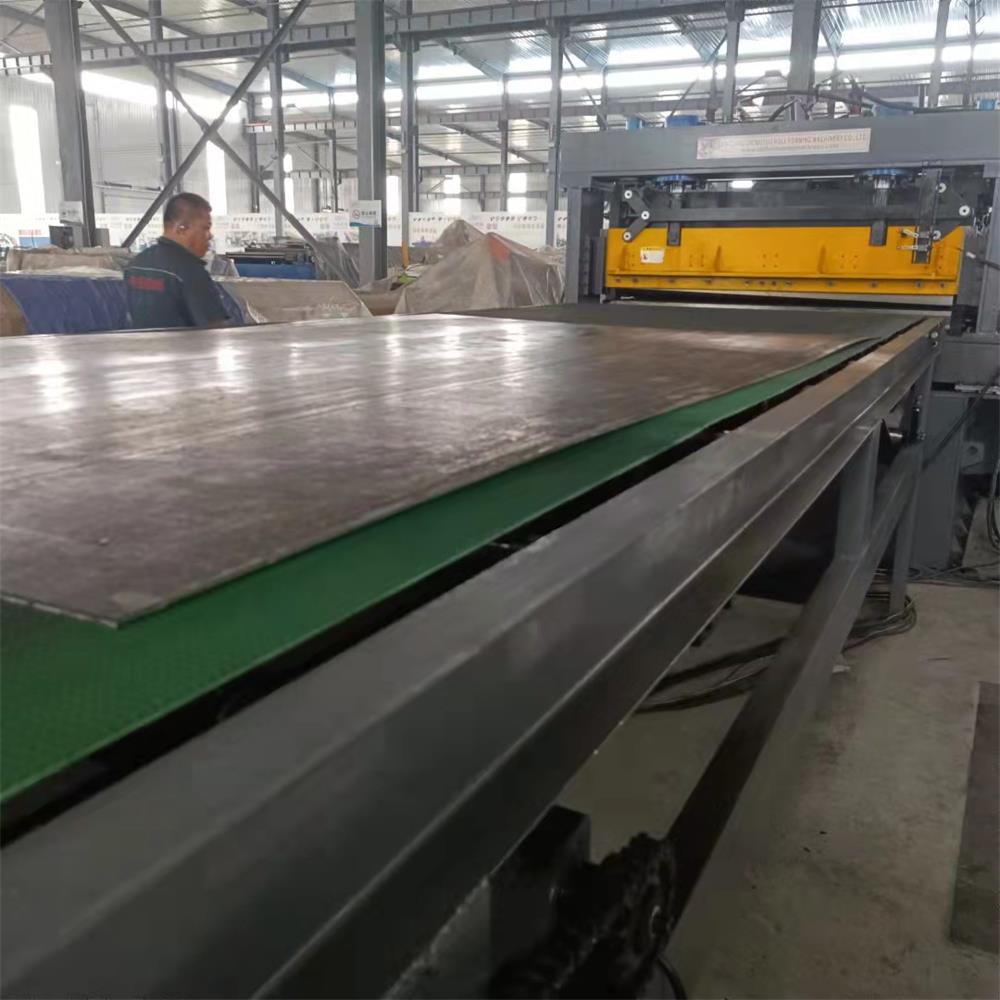

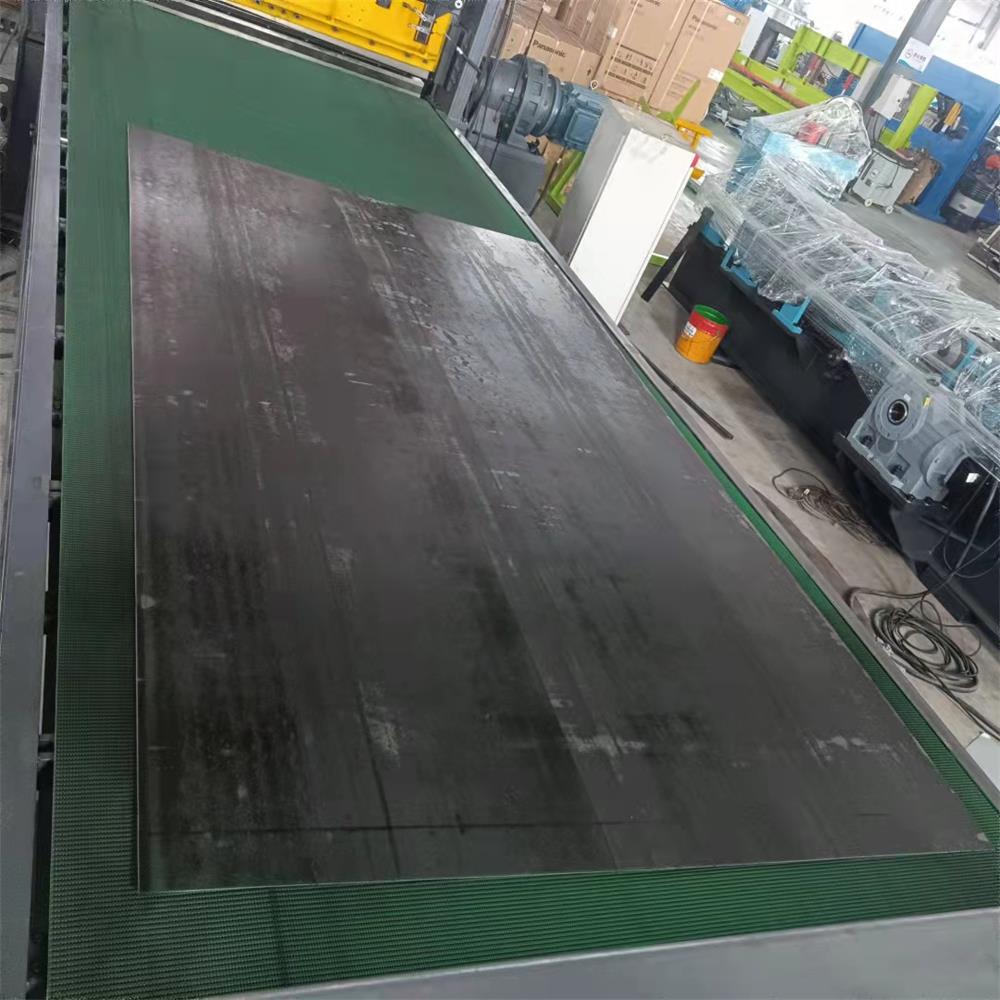

Here attached is the photos of our cut to length machine, this machine we made for our Libya customer, here we share the photos with you:
