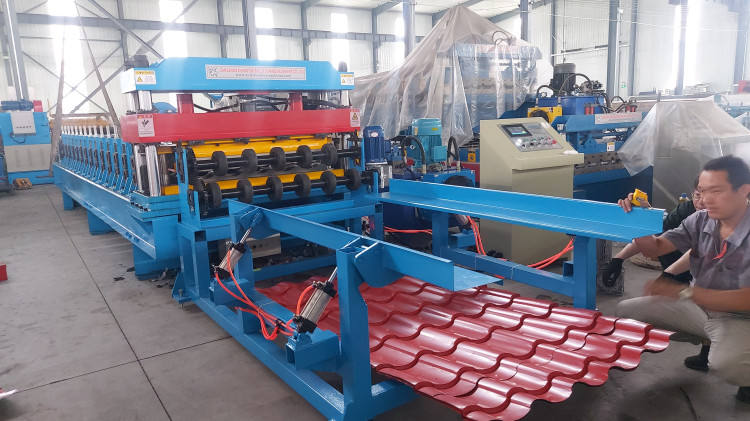

Full Automatic Adamante Roof Tile Making Machine, a state-of-the-art solution that revolutionizes roof tile production. This cutting-edge equipment boasts full automation, streamlining the manufacturing process and maximizing efficiency. Its precision engineering ensures the creation of exquisite Adamante roof tiles with consistent quality. The user-friendly interface allows easy operation and customization, enabling you to create various tile designs effortlessly. Built with top-notch materials, this machine guarantees durability and minimal maintenance, reducing downtime and increasing productivity. Experience seamless tile production from start to finish with the Full Automatic Adamante Roof Tile Making Machine, elevating your roofing materials to a new level of excellence.
Adamante Roof Tile Making Machine Design Idea：
Main Technical Parameters Of This Adamante Roof Tile Making Machine:
1)Material thickness:0.33-0.5mm
2)With 7ton hydraulic decoiler and loading car
3)14 rolling stations, main motor is 5.5KW
4)Both sides with 3D cutting
5)Gearbox driving, each station have one gearbox
6)Dleta brand PLC and controller
7)With 3m auto stacker
2)With 7ton hydraulic decoiler and loading car
3)14 rolling stations, main motor is 5.5KW
4)Both sides with 3D cutting
5)Gearbox driving, each station have one gearbox
6)Dleta brand PLC and controller
7)With 3m auto stacker
Profile drawing for reference:
Adamante roof tile has a specially profiled starting edge which increases the aesthetics of the roof.The clear and elegant shape of the profile perfectly emphasizes the character of the house. Here are some photos of adamante roof tile.
Processing Flow
For this Adamante roof tile making machine, client choose following production line:
Packing list- roofing profile roll forming machine | ||||
No. | Name | Unit | Quantity | Remark |
Part 1 | 7T decoiler with loading car | set | 1 | Automatic |
Part 2 | Main roll forming machine | set | 1 | Gear box drive |
Part 3 | PLC control station | set | 1 | Delta brand |
Part 4 | hydraulic system | set | 1 | For cutting |
Part 5 | 3M auto stacker | set | 1 | |
Part 5 | Spare parts | set | 1 | |
PRODUCT DISPLAY
 | 6 Tons Hydraulic Decoiler Carrying capacity: 6 tons Max coil width: 1250 mm Feeding speed: 0-40 m/min (adjustable) Driving motor power: 3 kw Hydraulic motor power: 5.5 kw Structure: welding by the steel plates and profiled bar. The decoiler is equipped with the brake system |
|---|---|
 | Feeding Device 1. Rubber rollers protect raw material surface 2. With handwheels easy adjust for feeding different thickness raw material. 3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet. |

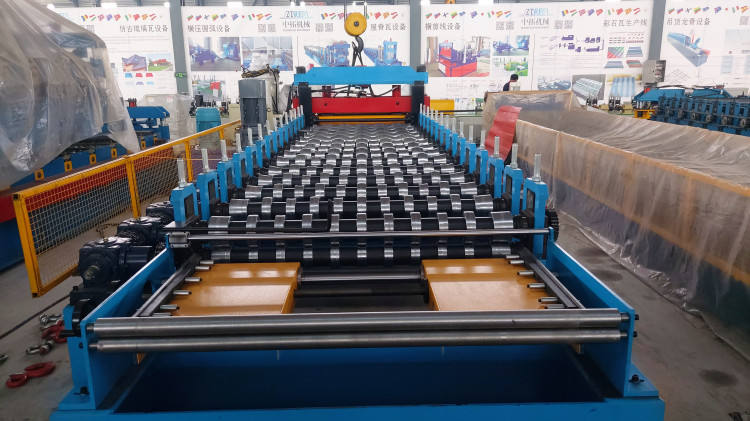

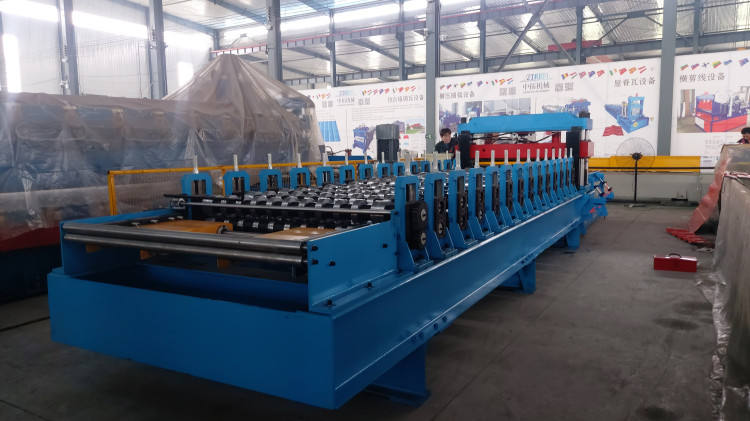

 | Roll Forming Device 1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance. 2. Each roller has number and with keynotes, it can fix on the shaft stablely |
 | Transmission Device Gearbox transmission,stable and no loose. |
 | Hydraulic Cutting Device 1.Adopt double oil cylinder more stable than single oil cylinder 2.Hydraulic motor power 5.5 kw with energy accumulator 3.Cutter material ：GB-Cr12 with heat treatment 4.Cutting length tolerance ±10m/2mm 5.Cutting feature ：Steady and safe working condition and low sounds |
 | PLC control system Brand PLC brand : Delta Inverter brand: Delta Low electric part: Schneider Encoder: Omron Function: 1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized) 4.National coinsurance,spar parts Brand Siemens and Schneider. |
 | Hydraulic station 4.5kw motor with cooling system for long time using. |
 | Automatic Stacker Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet Max. Length of the sheet: 3000 mm Max. Width of the sheet: 1250 mm The thickness of stack: 300 mm Carry arms control: pneumatic (the air pump is provided by the user) Push system: cylinder driving and controlled by control station, function: to align the sheets |
