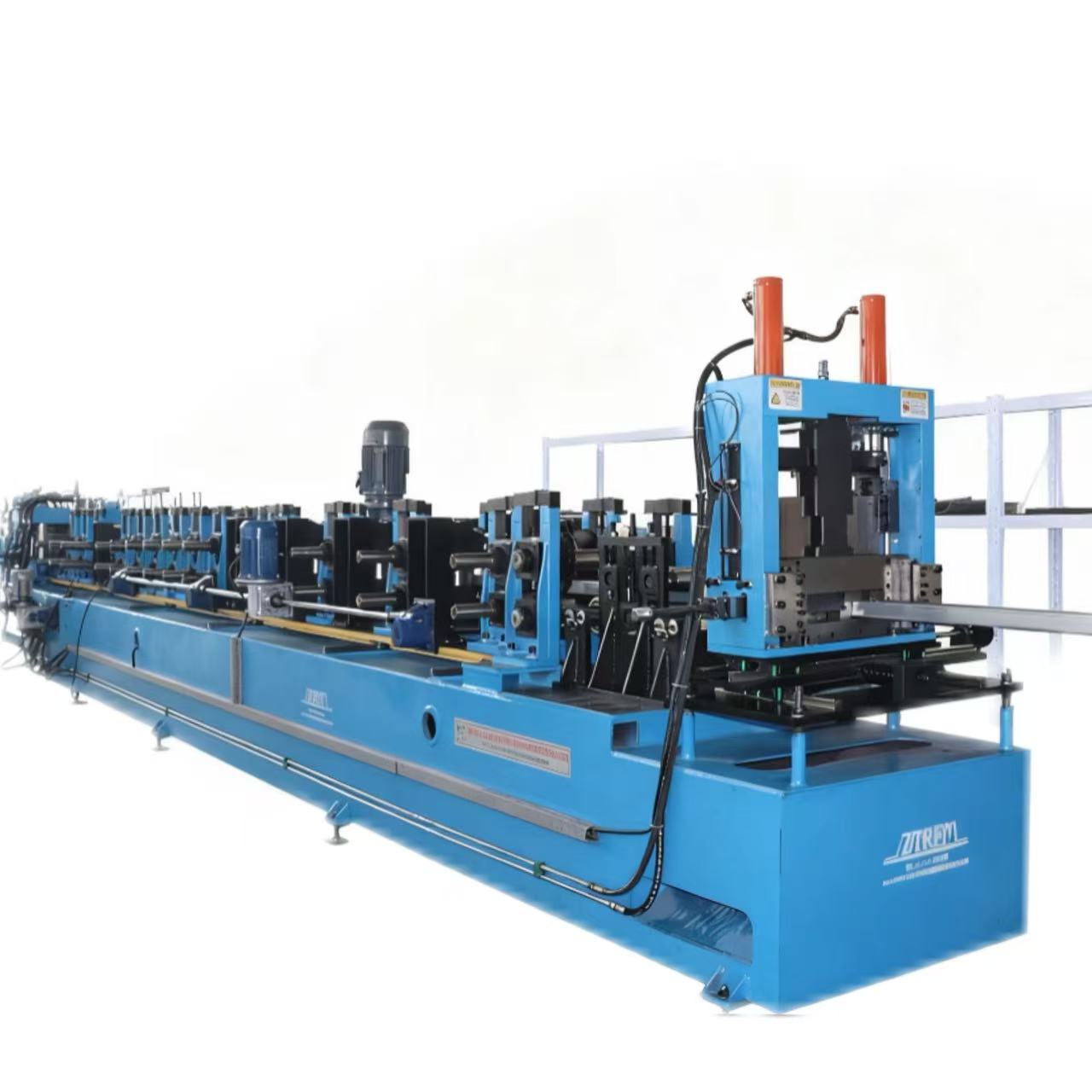

Drywall frame roll forming machine for metal stud and track
Metal Profile CD UD UW CW Roll Forming Machine Drywall steel frame construction machine, This Metal Profile CD UD UW CW Roll Forming Machine Drywall steel frame construction machine,is for making the stud and tracks for house frame.Usually have the CU,CW for the wall frame building,and CD/UD for the ceil building.
Here the usage of finished products for your reference.
CW UW for drywall usage.
Metal profile CD UD CW UW Roll Forming Machine Drywall Steel Frame Construction Machine | ||||
1.Formed Material | PPGI,GI,AI,color steel | Thickness（0.3-1.5mm） Width（customized） | ||
2.Decoiler | Hydraulic automatic decoiler(optional) | Ordinary decoiler(will give you as free） | ||
3.Main body | Roller station | 10-20 rows(As your requirement) | ||
Diameter of shaft | 50mm solid shaft | |||
Material of rollers | 45# steel, hard chrome plated on the surface | |||
Machine body frame | 350 H steel | |||
Drive chain | 1.2inch(As your requirement) | |||
Dimension(L*W*H) | 5300*1200*1400mm（customize） | |||
Weight | 4.2T | |||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
5.Power | Motor Power | 5.5KW | ||
Hydraulic system power | 7.5KW | |||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
7.Control system | Electric Box | Customized（famous brand） | ||
Language | English（Support multiple languages） | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
8.Forming Speed | 0-40m/min | The speed depends on the shape of the tile and the thickness of the material. | ||
