Metal steel construction material is getting more and more popular in the modern constructions nowadays, and standing seam panel also plays a import role in the roofing products, Bemo panel is one of the popular in the market such like India , Saudi Arabia , UAE ,etc. Bemo panel standing seam panel roll forming machine including of three parts, main roll forming machine , Oblique slitting machine and double side curving machine, this machine can make straight panel, tapered panel, Concave and convex panels,which can meet different requirements from different customers.
This the Bemo panel drawing for your reference:

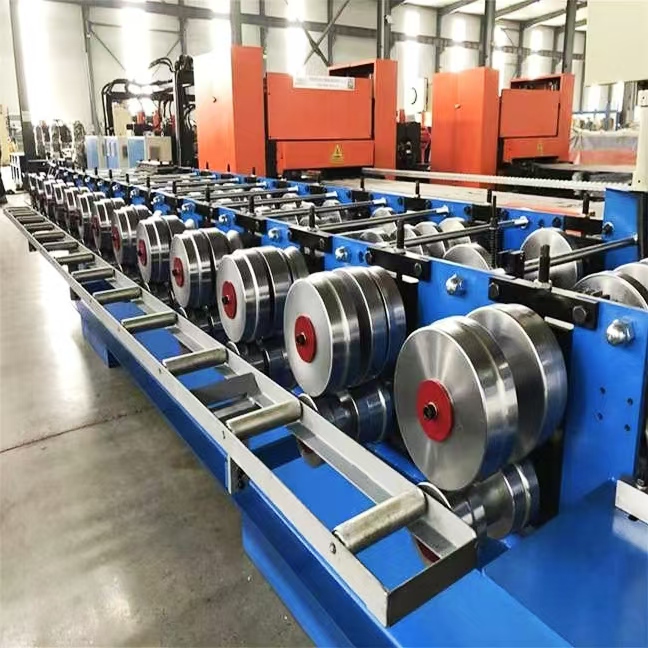

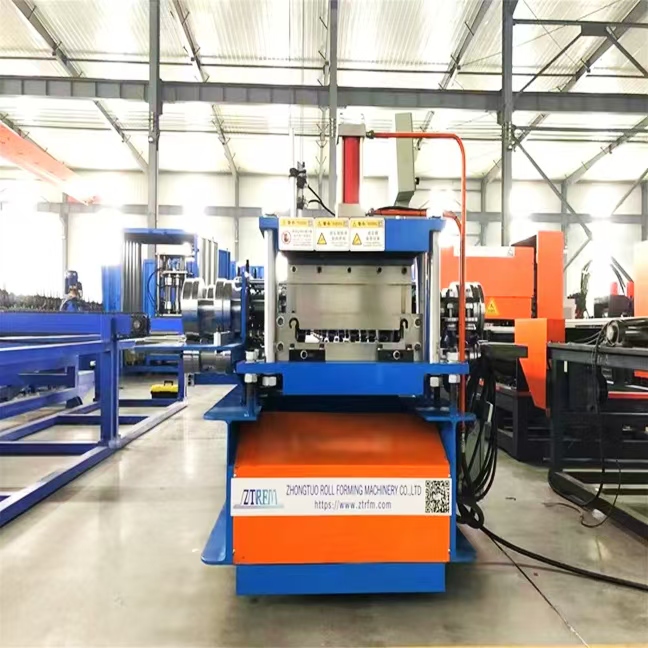

These are the machine pictures for your reference: Bemo panel roll forming machine .The main roll forming machine, which plays an absolutely crucial role in shaping the panels. This machine is the heart of the production process, meticulously transforming raw materials into precisely formed panels. Its advanced technology and precision engineering ensure that each panel is crafted to the highest standards
| Forming stations | 13 rows |
| Forming speed | 25m/min(without cutting) |
| Voltage | 380V/50HZ/3P(Customized) |
| Main motor | 5.5KW*2 |
| Hydraulic motor | 2.2KW |
| Cutting type | hydraulic post cutting |
| Side rollers | Can make tapered panel with different width |
| Control type | PLC control |

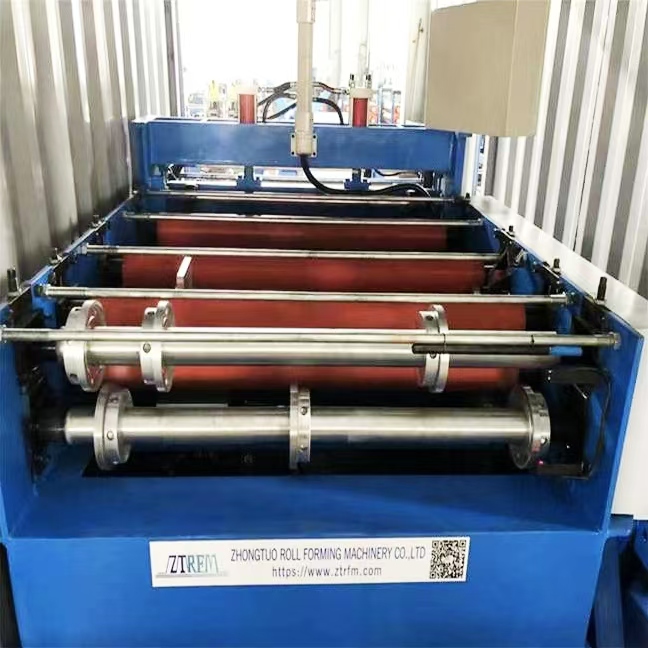

The oblique slitting machine then takes over, responsible for precise cutting. With its sharp blades and accurate controls, it cuts the panels with flawless precision, ensuring clean edges and consistent dimensions.
| Coil width | 1300mm（max）Tapered sheet ,straight sheet |
| Coil thickness | Aluminium:0.76-1.2mm |
| Control type | PLC control |
| Main motor | 4 KW |
| Hydraulic motor | 3 KW |
| Cutting type | hydraulic cutting |
| Servo motor power | 1KW |
| Speed | 12m/min |

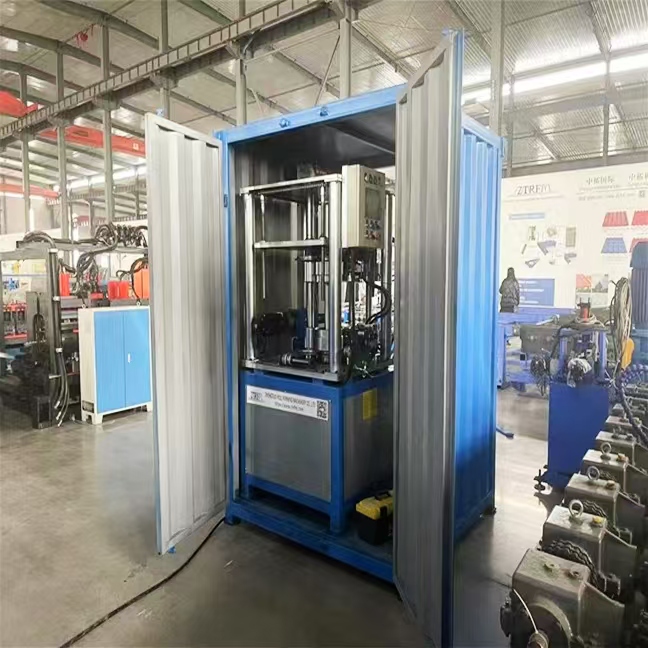

Double side curing machine plays a crucial role in ensuring the durability and quality of the panels. By applying a special treatment to both sides of the panels, it enhances their resistance to wear, weathering, and other environmental factors.
Bemo panels hold a truly significant position. Renowned for their superior quality and innovative design, Bemo panels have become a standout choice in the market. In diverse markets such as India, Saudi Arabia, and the United Arab Emirates (UAE), where architectural styles vary greatly and construction requirements are demanding, Bemo panels have emerged as an extremely popular choice. Their durability ensures long-term performance, while their aesthetic appeal adds a touch of modern elegance to buildings.
These are some application picture of the Bemo panel for your reference:
