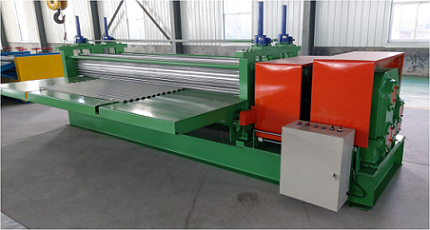

This Barrel Type Corrugated Sheet Forming Machine is an innovative industrial device designed for efficient production of high-quality barrel type corrugated sheets. Its versatility allows for various sizes and designs of corrugated sheets, meeting diverse construction needs. The Barrel Type Corrugated Sheet Forming Machine ensures consistent and accurate results, optimizing production efficiency and reducing labor costs.

Barrel type corrugated machine is a kind of metal sheet roll forming machine. It’s very popular in Southeast Asia and some Africa country. Different from normal roll forming machine, it only have two tooth rollers and two leveling rollers. Before roll forming process, there will have a running table, after feeding the metal sheet into these two rollers, the thin metal sheet will become round wave type. Barrel type corrugated machine usually produce 0.13-0.5 mm thickness material. The normal machine configuration include roll forming device, pinch roller device, two set product collect table.

The machine length can be customized by your request, to better quote you, we would like to know your material hardness if you can provide.

That may help us make accurate machine solution.

About barrel type corrugated machine details:

1.The machine is drive by A. C through a gear reduction drive train.

2.Sheet width:  750-1250 mm

3.Thickness range: 0.13-0.5 mm

4.Motor : 7.5 KW + one set reducer

5.Machine speed: Max speed can reach 10-15 pcs/ min

6.Voltage: 380V or as your request.

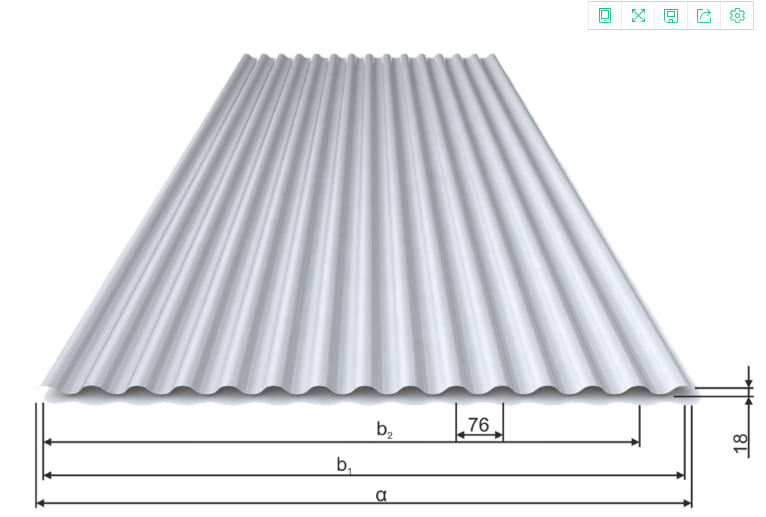

The profile drawing of round wave metal sheet:

Here we take the a kind of stand seam sheet for example:
The profile drawing as below:

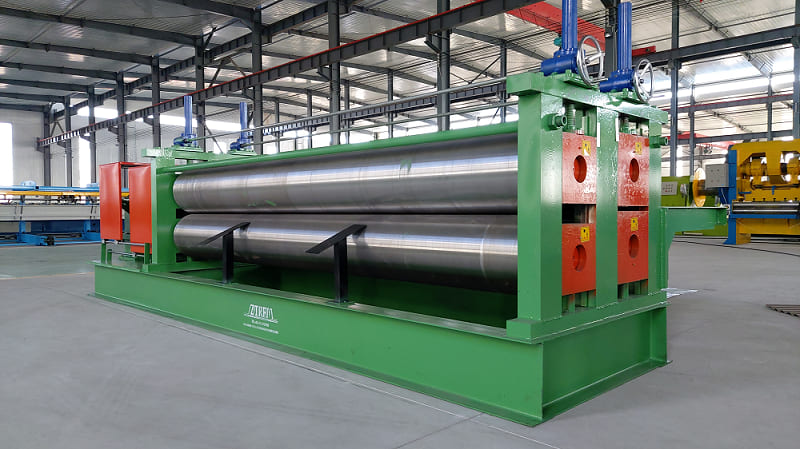

Here are some pictures for your reference to check the machine details:
