Automatic CZ purlin roll forming machine are used all over the world. Our automatic CZ purlin roll forming machine is renowned worldwide for its advanced features and reliable performance.We have rich experience in manufacturing and exporting it.

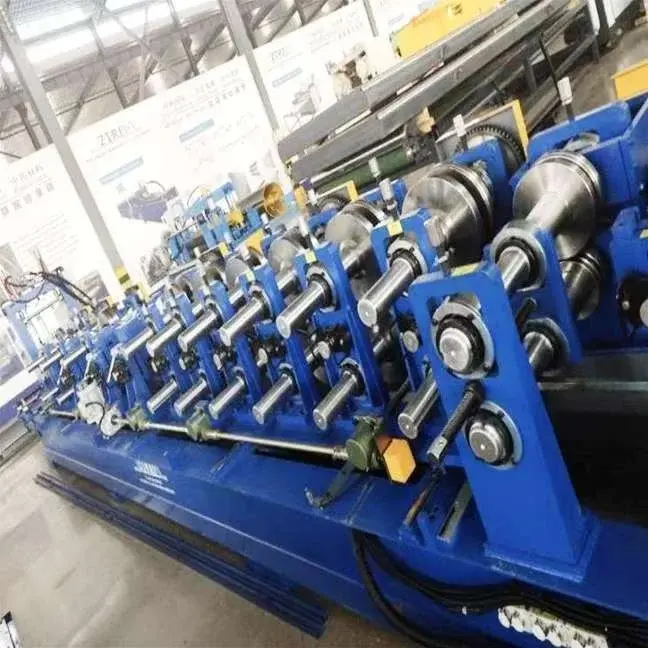

Automatic CZ purlin roll forming machine
Working flow:
The video include:Uncoiling → Feeding material into machine → Leveling → punching and pre-shearing → roll forming → Products receiving table
we have many advantages compared with other companies.
Fully Automatic Size Change: Equipped with an intelligent operating system that allows for seamless product size adjustments.
Strong Construction: With 21 rows of forming rollers, a maximum molding speed of 32m/min, a servo motor, and 30kW power. It also has 80mm solid shafts for support.
Machine main part :
The machine has leveling and straightening parts, the product is beautiful and accurate. The feeding width can be adjusted automaticall
y, and there are 3 up 4 down levelling rollers to ensure the flatness of the steel sheet. The roller material is CR15, diameter is 75mm.
Thickness :1-3mm the size of the product can be customized,
Automatic decoiler or manual decoiler. According to the customer’s requirement
The feeding part:
Precise Hole Punching: Punches holes before forming to guarantee accurate hole positions. The punching mold is made of Gcr12 with quenched treatment.
Punching part:
Manual Back Cutter Adjustment: Can be adjusted to fit various product sizes without changing the blade.
Cutter part:
15 kW hydraulic station, with air cooling device, capacity of 300 liters.
Full Automation Options: We offer automatic decoiler and stacker to automate the entire production line, ideal for customers with high labor costs and large production needs.
Automatic stacker or simple recevied table
Computer intelligent control system, has remote control function.
Installation and Support:
Provide instruction book and remote service. Our technicians can also be dispatched to your country if required.
Warranty and Spares:
Two-year warranty period. Comes with spare parts and a toolbox. In case of non-human damage within two years, free additional machine parts will be sent to the customer.
